SPECIAL-APPLICATION CAPACITORS

Capacitors - beyond the catalogue.

Marxelec designs and manufactures special-application capacitors for
defence, research and demanding industrial systems - custom-engineered
in India and supplied across 20+ countries.

Request a quote
View products

Capacitor families · SELECT BY APPLICATION

Six families.
Engineered for efficiency and performance.

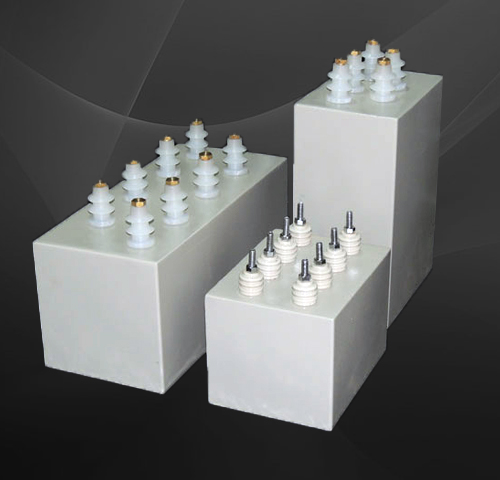

Marxelec Energy Storage / Discharge Capacitors
ESC Series Energy Storage / Discharge Capacitors High-current pulse-discharge capacitors engineered for applications where stored energy, peak current, discharge profile and low-inductance construction are critical. SPECIFICATIONS
Up to 160 kV DC
· Over 500 kA peak discharge
· Up to 50 kJ per unit
APPLICATIONS
Pulse-forming networks ·
Marx generators ·
Pulsed-power systems ·
Cable-fault location ·
Defence and research systems
View product →
Marxelec High-Voltage DC / DC Filter Capacitors
HVDC SERIES High-Voltage DC / DC Filter Capacitors High-voltage DC and DC filter capacitors for ripple smoothing, DC-link duty and direct-current circuits requiring low ESR, high ripple-current capability and stable electrical performance. SPECIFICATIONS
Up to 5000 µF
· Up to 160 kV DC
· Low-ESR construction
APPLICATIONS
High-voltage DC supplies ·
Voltage multipliers ·
Converters and inverters ·
Radar systems ·
DC-link applications
View product →

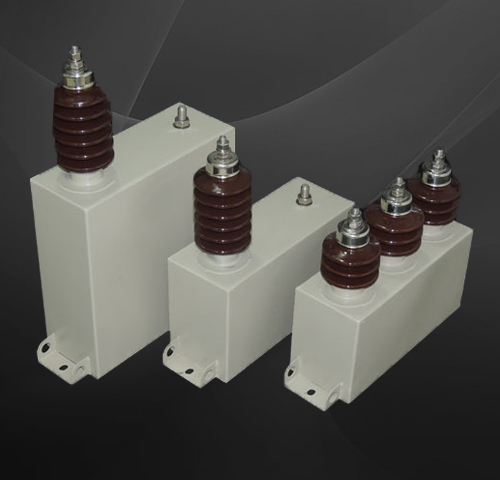

Marxelec Surge Protection Capacitors
SPC SERIES Surge Protection Capacitors Surge capacitors and RC / CR suppressors for high-voltage motors, transformers, switchgear and vacuum-breaker circuits exposed to switching transients. SPECIFICATIONS
3.3–36 kV systems
· Impulse withstand up to 190 kVp
APPLICATIONS
HT motors ·
Transformers ·
Switchgear ·
Vacuum-breaker circuits ·
Arc-furnace transformers ·
View product →
Marxelec Water-Cooled / Air-Cooled Capacitors
WC/AC SERIES Water-Cooled / Air-Cooled Capacitors Medium- and high-frequency capacitors for induction-heating systems where reactive output, frequency, current, cooling and terminal configuration determine performance. SPECIFICATIONS
Up to 7200 kVAr
· Up to 4.4 kV
· Up to 50 kHz
APPLICATIONS
Induction melting ·
Billet heating ·
Induction hardening ·
Forging and forming ·
Heat-treatment systems ·
View product →
View all product families

CHOSEN BY CLIENTS FOR APPLICATION-LED ENGINEERING

Direct supplies to government institutions.
Exported to 20+ countries.

Marxelec supplies special-application capacitors directly to government research,
defence and technology institutions, as well as industrial customers across international markets.

BARC

Bhabha Atomic Research Centre

(Direct Supply)

Indian Govt. Research Institution

DRDO

Defence Research & Development Organisation

(Direct Supply)

Indian Govt. Defense Research Org

RRCAT

Raja Ramanna Centre for Advanced Technology

(Direct Supply)

Indian Govt. Research Institution

IPR

Institute for Plasma Research

(Direct Supply)

Indian Govt. Research Institution

Magney Grande

USA

Export client

Neos Enerji

Turkey, Middle East

Export client

Lewis Bolt & Nut company

North America, USA

Export client

20+

Countries

Middle East · Europe · Asia · Americas

Active export regions

Middle East

UAE · Oman · Turkey · Israel

Europe

UK · Italy · Greece · France

Americas

USA · Canada

Our Clients

INDUSTRIES · FIND BY APPLICATION

Find Marxelec by the application.

01 Defence & Atomic Research Special-application capacitors for pulsed-power, high-voltage DC, energy-discharge and research systems where controlled design, testing and documentation are essential.
02 Research Institutions Capacitors for high-voltage testing, plasma research, accelerators, metrology and experimental systems requiring application-specific electrical and mechanical design.
03 Induction Heating & Metal Processing Water-cooled and air-cooled capacitors for induction melting, hardening, billet heating, forging, forming and heat-treatment systems.
04 Surge Protection & Switching Duty Surge capacitors and RC / CR suppressors for motors, transformers, switchgear, generators and vacuum-breaker circuits exposed to switching transients.
05 Medical & Specialist Systems Energy-storage, high-voltage and custom capacitors for medical imaging, RF heating, electrostatic precipitators and specialist OEM equipment.
FOUNDER Vinod Bolaj
FROM THE FOUNDER

Four decades of capacitor engineering,
brought into sharper focus.

Four decades in capacitor engineering led me to a clear vision: to concentrate Marxelec on the applications where technical judgement and specialist experience matter most.

That focus now shapes our vision - to become the first name engineers call for special-application capacitors. We are building deeper capability across energy-storage and discharge systems, high-voltage DC applications, surge protection, induction-heating capacitors, PD-sensitive measurement and import-substitute development.

Our ambition is not simply to manufacture a broader range. It is to build a stronger engineering organisation-one capable of taking Indian special-application capacitor expertise to demanding customers worldwide.

Read the full note →
signeture
Vinod Bolaj
Founder & Managing Director
Start an enquiry

Tell engineering
what you are building.

Send the details you have-voltage, capacitance, frequency, current, cooling method, application context, drawing, existing part number, nameplate photograph or failed-sample details.

The first message does not need to be complete. It needs to start the technical review.

Our team will respond within two working days.

Request for Quote →
